Harvey RT-800 Stainless Router Table 800mm
RT-800 Stain-less Cast Iron Router Table combines the enduring reliability of cast iron with the advanced technique of nickel-plating, ensuring a workshop essential that stands the test of time and use.
The nickel-plated table surfaces achieved an impressive hardness of 500HV- 700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.
Additionally, We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.
RT-800 is compatible with all Alpha Series Cabinet Table Saw models.
RT-800 is not compatible with Mobile Base (MB-600)
|
ITEM |
RT-800 |
|
|
Router Table |

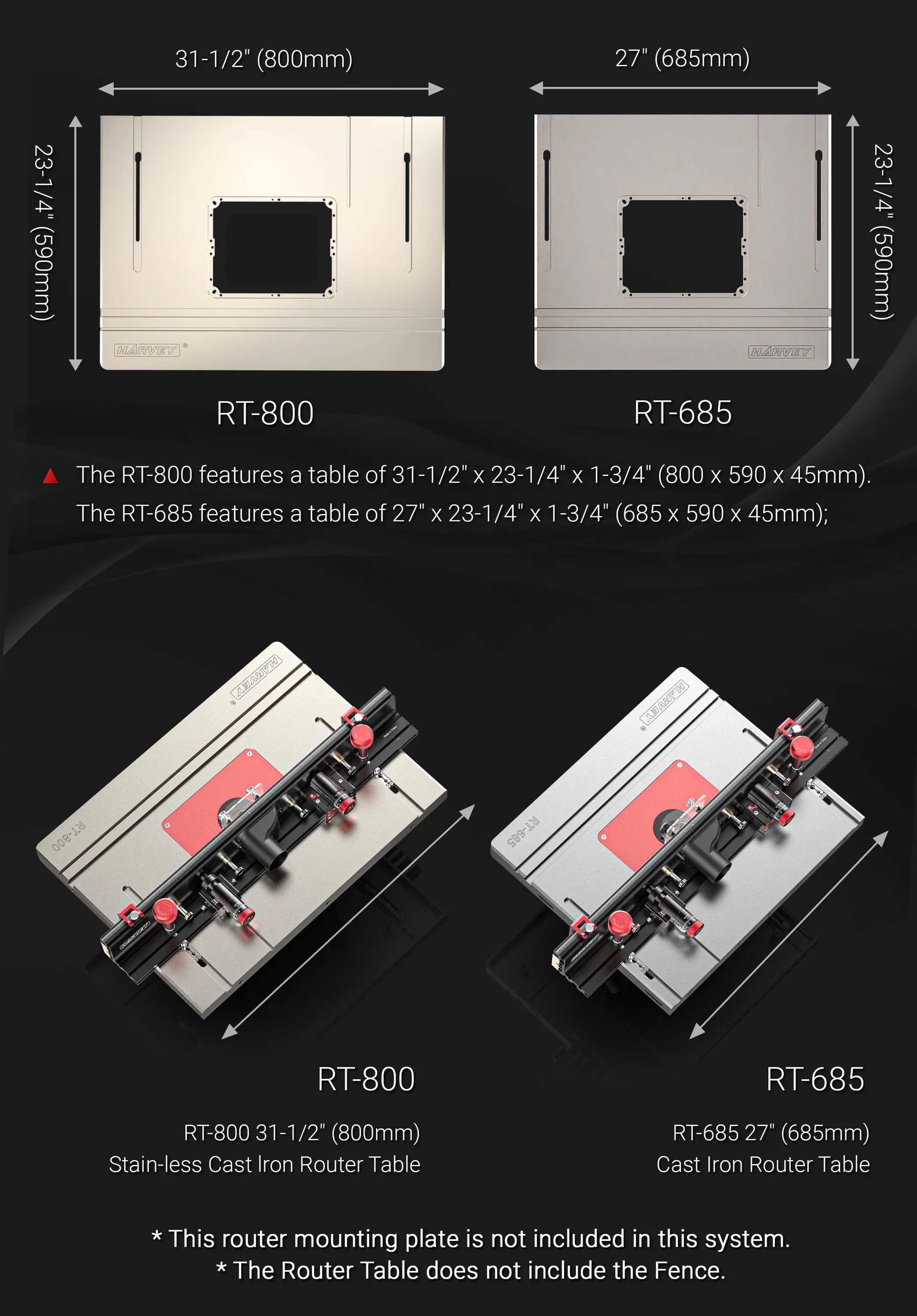

Table Size |
31-1/2" x 23-1/4" x 1-3/4" (800 x 590 x 45mm) |
|
Table Opening Size |
11-3/4”x 9-1/4”x 2/5” (298.5x235x10mm) |
|
|
Front T-Slot to Arbor Center |
6“ (152mm) |
|
|
Size of Front T-Slot |
3/4″ x 1″ x 3/8″ (19.05x25.4x9.525mm) |
|
|
Rear T-Slot to Arbor Center |
7-1⁄2“ (190mm) |
|
|
Size of Rear T-Slot |
1/4"x7/16"x2/5" (7x11.2x10mm) |
|
|
Package size |
34-1/2” x 29-1/8” x 4" (870 x 740 x 100mm) |
|
|
Net/Gross weight (approx.) |
105.6/112.2 lbs (48/51Kg) |
|
|
Router Fence |
Fence Board Dimension |
36" x 4-15/32 x 3-9/16" (915x113.5x91mm) |
|
Fence Face Dimension |
2-5/8”(450x66.675mm) |
|
|
Max. Fence Assembly Travel |
7" (177.8mm) |
|
|
Fence Assembly Fine-tuning Itinerary |
1/2" (12.7mm) |
|
|
Fence Face Fine-tuning Itinerary |
1/4" (6.35mm |
|
|
Dust Port Size |
2-1/2" (63.5mm) outside, 2-1/4" (57.5mm) inside, |
|
|
Package size |
38” x 9-5/8” x 7-3/16" (966 x 246 x 182mm) |
|
|
Net/Gross weight (approx.) |
19.8/24.2 lbs (9/11Kg) |
|
|
Dust Collection Cabinet |
Dust Collect Cabinet Size |
12-1/2" x 10" x 14" (318 x 256 x 355.6mm) |
|
Dust Port Size |
2-1/2" (63.5mm) +4"(100mm) |
|
|
Package size |
15-3/8” x 13” x 15-1/8" (390 x 330 x 385mm) |
|
|
Net/Gross weight (approx.) |
14.3/ 15.4 lbs (6.5/7Kg) |
|
RT-800 Stain-less Cast Iron Router Table combines the enduring reliability of cast iron with the advanced technique of nickel-plating, ensuring a workshop essential that stands the test of time and use.
The nickel-plated table surfaces achieved an impressive hardness of 500HV- 700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.
Additionally, We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.
RT-800 is compatible with all Alpha Series Cabinet Table Saw models.
RT-800 is not compatible with Mobile Base (MB-600)
|
