Stainless Steel High-Pressure Bag Filter Housing – 2# Single Bag (SS316) with Pressure Reduction Valve

This high-pressure stainless steel bag filter housing is engineered for demanding industrial water filtration applications where strength, reliability, and corrosion resistance are critical. Manufactured from 316 stainless steel and designed to operate under high pressure and temperature, this unit is ideal for construction, mining, quarrying, farming, industrial processing, and commercial water systems.

With a 2# single-bag configuration, large filtration area, integrated pressure gauge, air vent, and a stainless steel pressure reduction valve, this housing delivers efficient particle removal while maintaining safe and controlled system pressure.

---

🔧 Key Features & Benefits

• 316 Stainless Steel Construction
  Superior corrosion resistance for harsh environments, chemicals, and abrasive water sources.

• High-Pressure Design
  Rated to 1600 kPa working pressure, suitable for industrial pumping and pressurised systems.

• Large Filtration Capacity
  Uses a 2# filter bag with 0.5 m² filtration area, allowing high flow rates with reduced clogging.

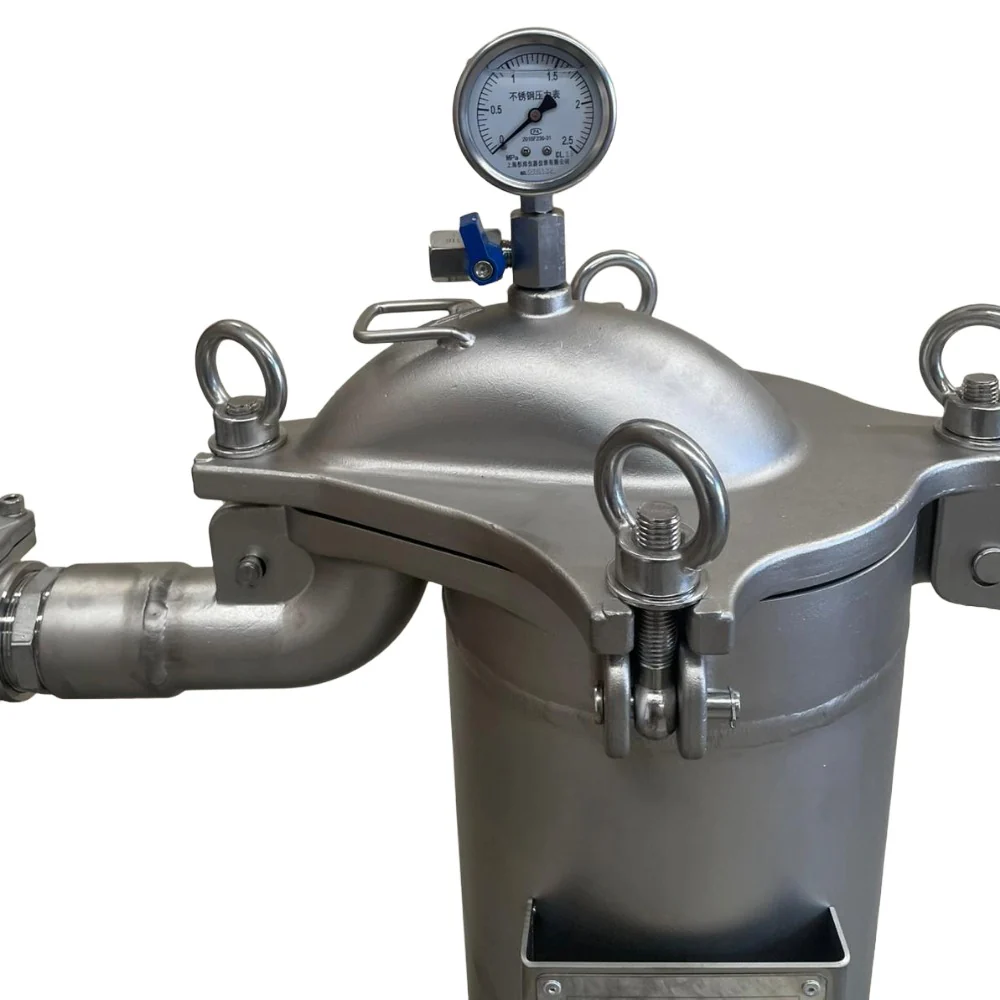

• Integrated Safety & Monitoring
  Supplied with:

  • Pressure gauge (1/4" BSPF)

  • Air vent with tee (1/4" BSPM + vent valve)

  • Stainless steel pressure reduction valve for system protection

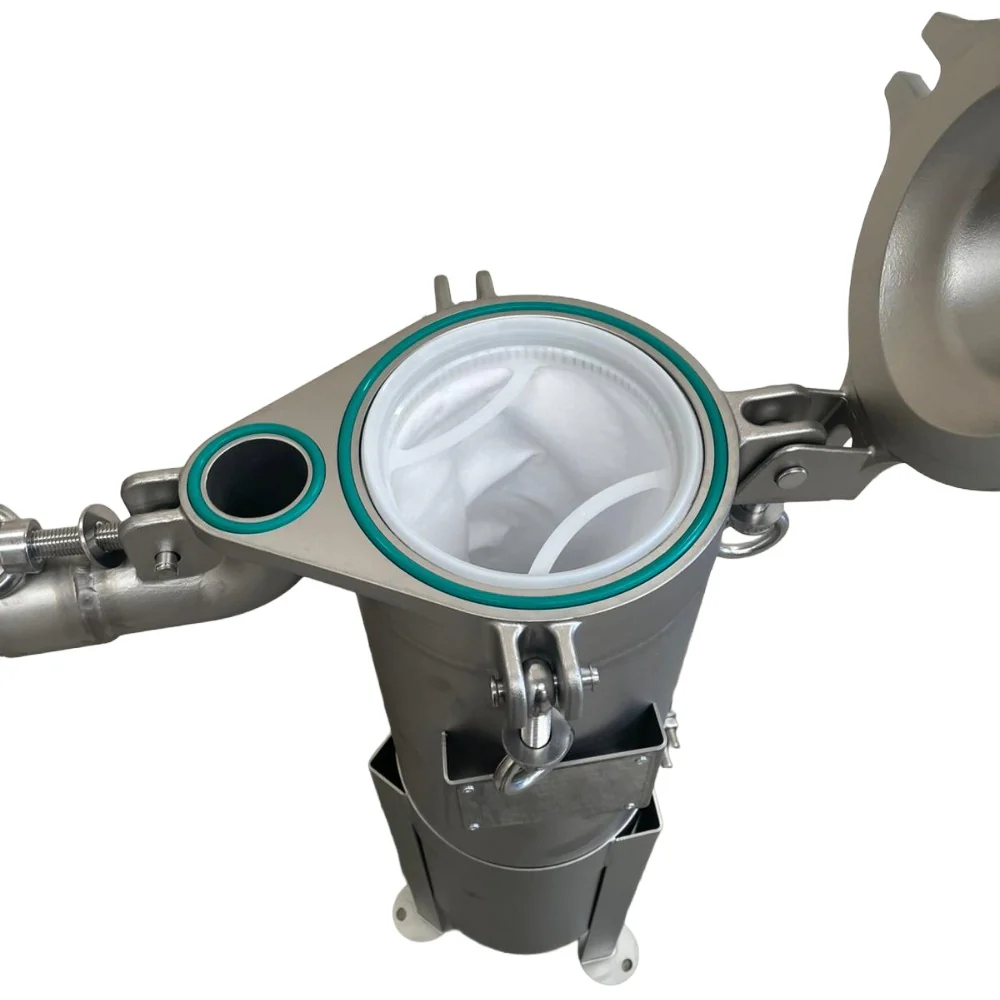

• Easy Maintenance Design
  Clamp-lid opening, Viton sealing ring, and removable stainless steel filter basket for fast bag changes and servicing.

• Industrial Surface Finish
  Sandblasted exterior for durability and professional installation appearance.

---

⚙️ Technical Specifications – Filter Housing

• Housing Material: Stainless Steel 316

• Filter Type: 2# Single Bag

• Filter Bag Quantity: 1

• Filtration Area: 0.5 m²

• Inlet: 50mm (2')
• Outlet: 50mm (2")

• Housing Diameter: Ø219 mm

• Housing Height: 1100 mm

• Housing Thickness: 3.0 mm

• Filter Basket Material: Stainless Steel 316

• Basket Thickness: 1.2 mm

• Basket Hole Size: 4 mm

• Seal Ring: Viton

• Surface Finish: Sandblasted

• Design Pressure: 1600 kPa

• Design Temperature: Up to 110°C

• Inlet / Outlet:

  • Inlet: 2" (50mm) BSP (Side Inlet)

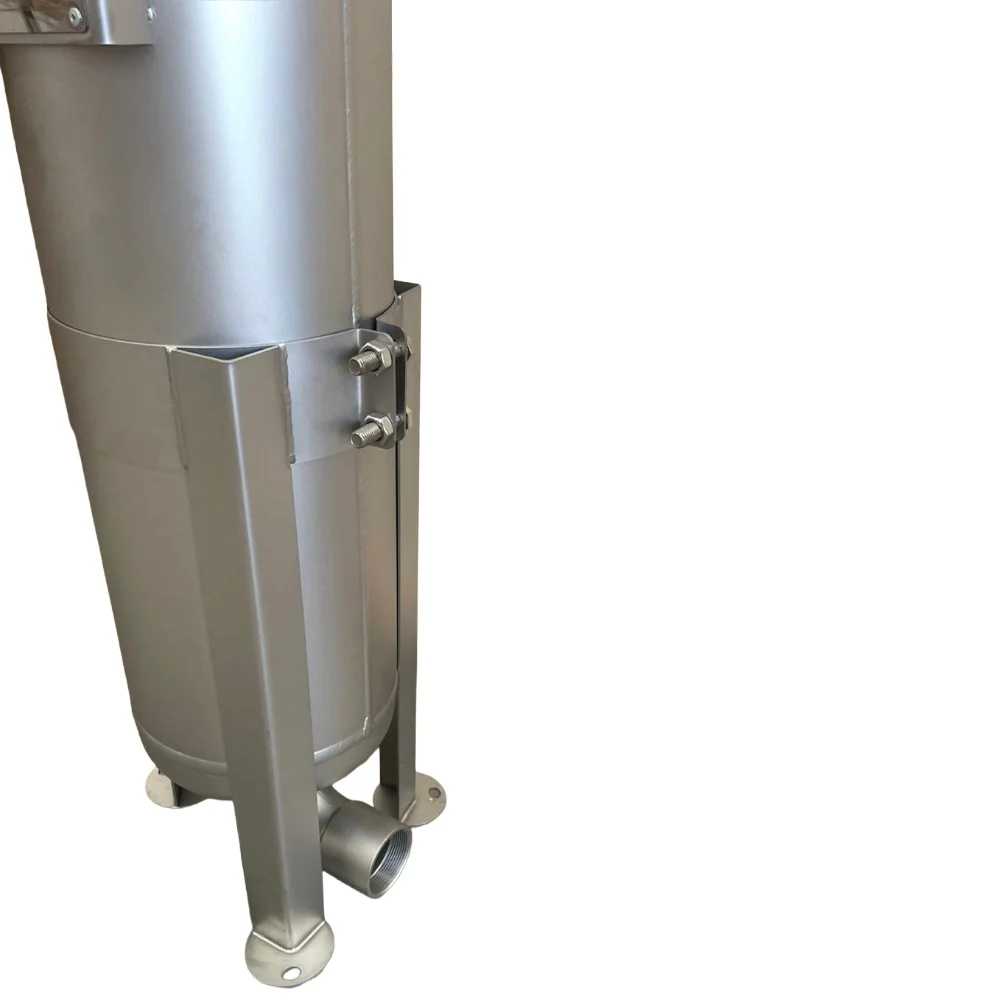

  • Outlet: 2" (50mm) BSP (Bottom Outlet)

---

🔩 Pressure Reduction Valve (Included)

• Type: Relief / Pressure Reduction Valve

• Material: Stainless Steel 316

• Pressure Range: Up to 2500 kPa

• Connection Size: 2" BSPF

Designed to protect downstream equipment by controlling excess pressure within the filtration system.

---

🏗️ Typical Applications

• Industrial and process water filtration

• Construction and civil works

• Mining and quarry operations

• Agricultural irrigation and pump protection

• Commercial and plant water systems

• High-pressure transfer and filtration lines

---

Package dimensions

1150 x 600 x 600mm (LxWxH)

---

✅ Why Choose This Housing?

This unit is built for serious, real-world use, combining high-pressure capability, premium materials, and integrated safety components into a single, robust filtration solution. It’s ideal where plastic housings are not suitable and long service life is essential.
