BBT 3" Diesel High Pressure Cast Iron Water Pump - 11HP Electric Start
BBT 3" Diesel High Pressure Cast Iron Water Pump – 11HP Electric Start + Fuel Solenoid Shutdown
When performance, power, and pressure matter, the BBT 3" Diesel High Pressure Water Pump delivers. Built for demanding applications such as firefighting, high-lift water transfer, rural property management, and long-distance irrigation, this pump is engineered for professionals, farmers, and serious DIY enthusiasts who don't settle for second-best.
Powered by a rugged 11HP Direct Injected Diesel Engine, this high-pressure unit boasts a massive 102-metre total lift, with an impressive flow rate of 40,000 litres per hour through its 3" (80mm) outlet. Whether you're drawing water from a deep dam, transferring across long distances, or tackling fire hazards, this pump performs where others can't.
🔧 NEW Feature: Fuel Solenoid Shutdown System
This model now comes fitted with a fuel shut-off solenoid, allowing you to turn off the engine directly via the key switch, just like in a modern diesel vehicle. This upgrade eliminates the need to manually choke off the fuel line, providing you with more control, enhanced safety, and true convenience with every use.
✅ Key Features:
- 11HP Direct Injected Diesel Engine – Built for reliability and torque-heavy performance
- Electric & Recoil Start – Includes FREE battery for effortless startup
- Fuel Solenoid Shut-Off System – Turn off engine easily with key ignition (no manual shutdown)
- 102m Max Total Lift – Reach long-distance or elevated areas with ease
- 3" Cast Iron High-Pressure Pump – Industrial-grade design for durability and volume
- Flow Rate: 40,000 LPH (667 L/min) – Perfect for firefighting, irrigation, and water transfer
- Decompression Valve – For smooth recoil starting

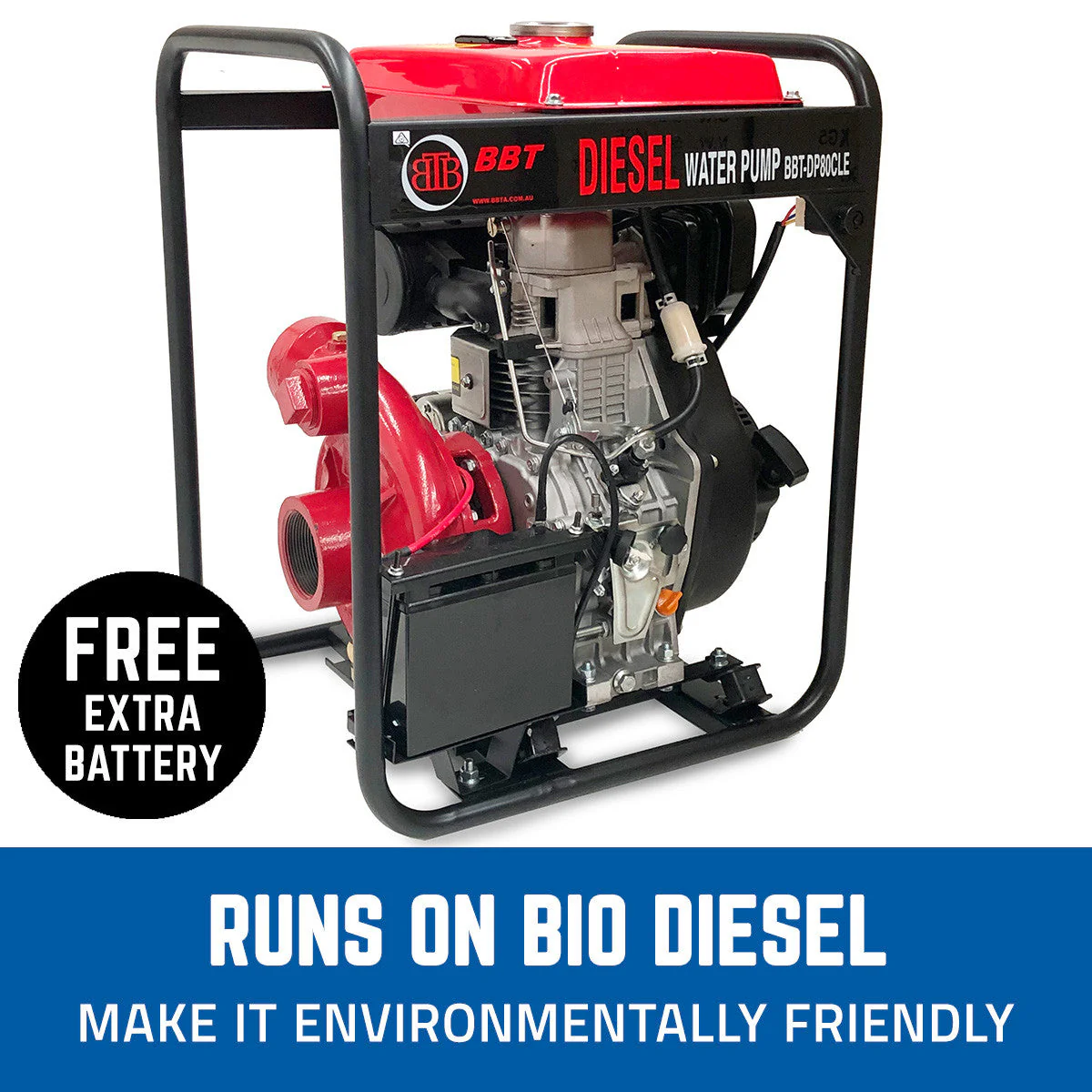

- Compatible with Bio-Diesel – More environmentally conscious fuel options
- Diesel Fuel Efficiency – Extended runtime and lower operational costs

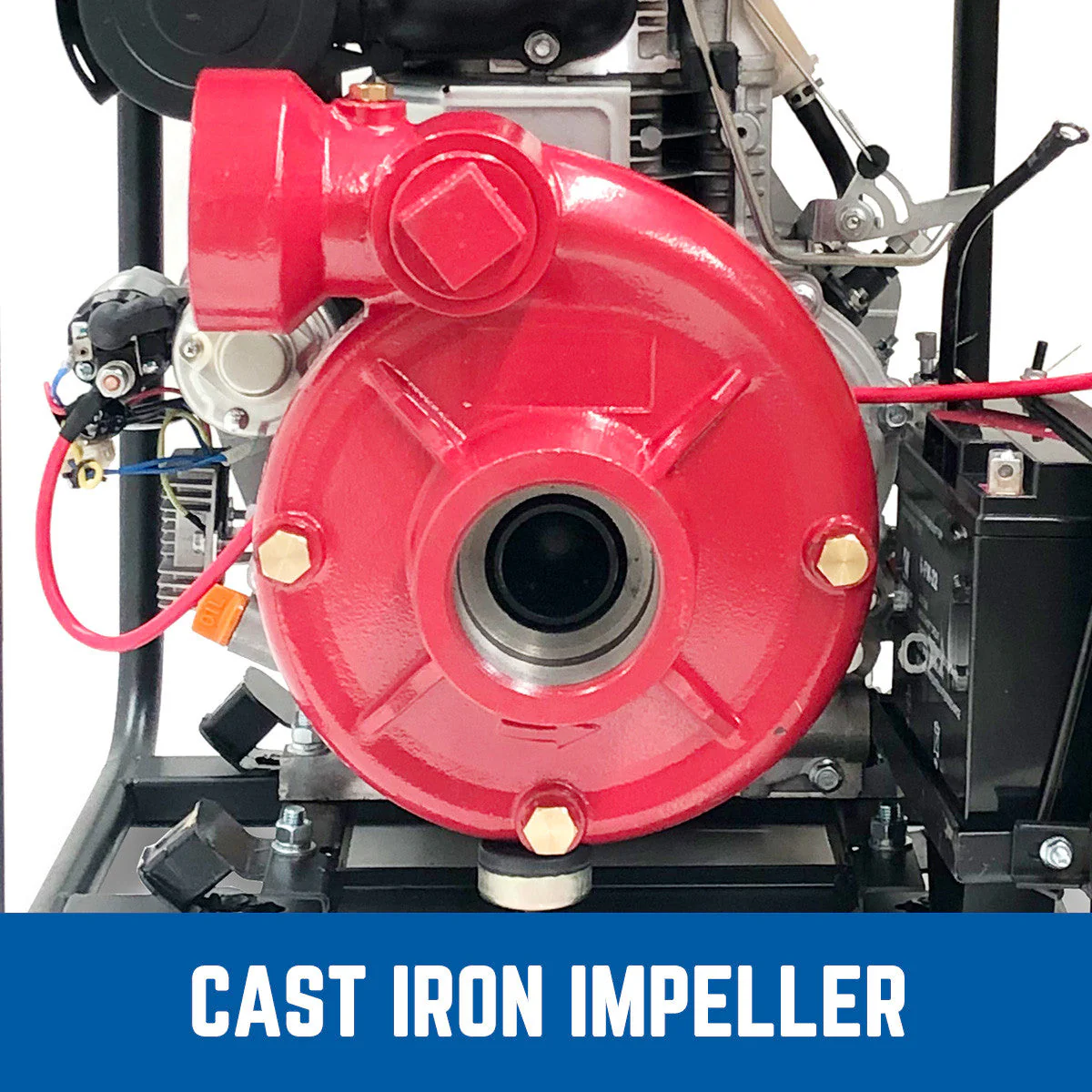

- Durable Cast Iron Volute & Impeller – Withstands abrasive and high-demand environments
- Heavy-Duty Steel Frame – Built for field use
- All Spare Parts Available – From air filters to complete rebuild kits
📦 Specifications:
| Engine Type | Koop 188F 4-Stroke Diesel, Direct Injection |
| Starting System | Electric Start + Recoil Start |
| Max Output | 11HP |
| Suction Port | 3" (80mm) |
| Discharge Port | 3" (80mm) |
| Max Flow Rate | 40,000 L/h (667 L/min) |
| Max Head (Lift) | 102 metres |

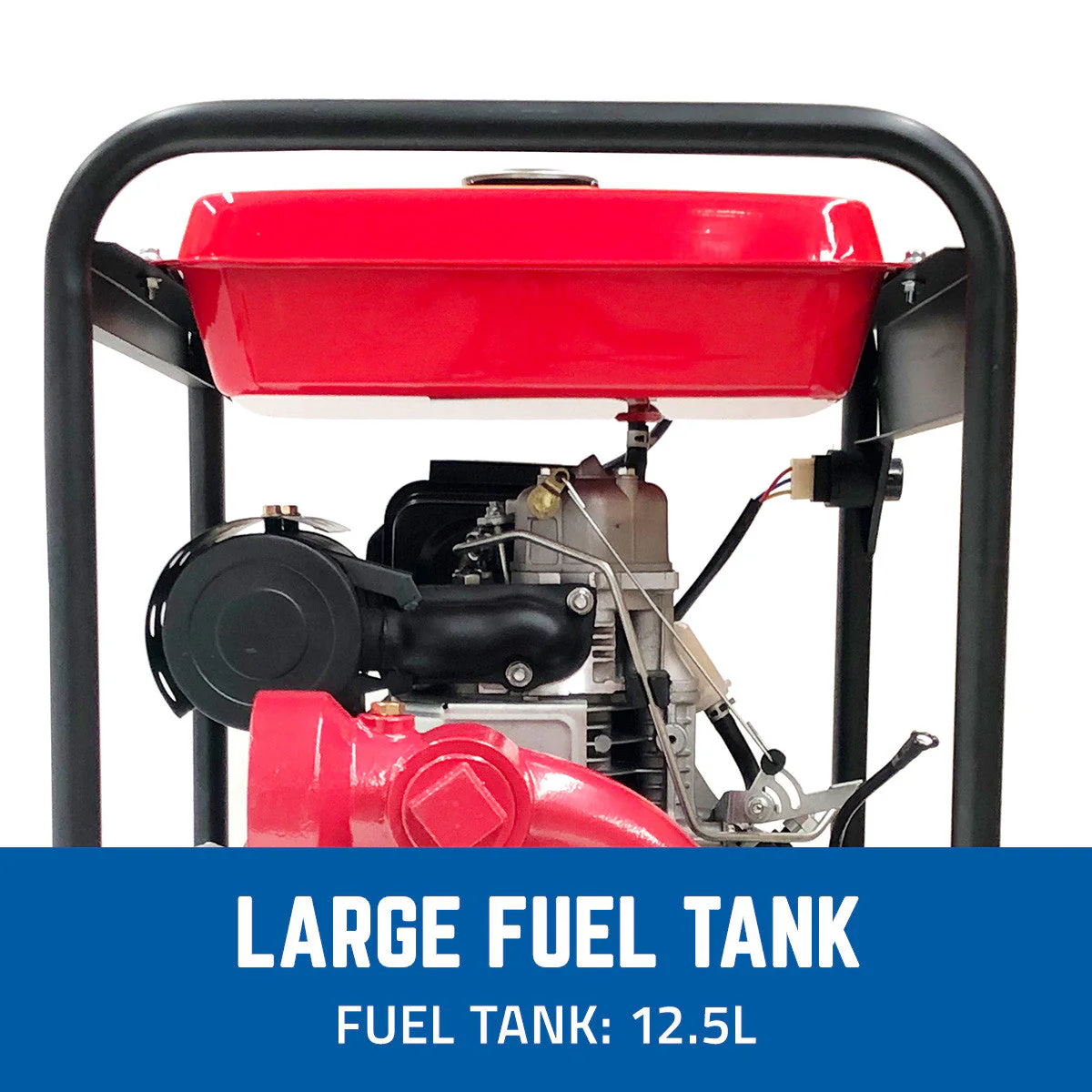

| Fuel Tank Capacity | 12.5L |
| Engine Oil | 1.2L SAE 30 |
| Pump Housing | Cast Iron |
| Weight | 85kg |
🛠 Best Practices:
- Always use a foot valve (non-return valve) when drawing from below the pump to ensure proper suction and avoid dry running.
- Maintain regular oil checks and service intervals for optimal performance and longevity.
⚠️ IMPORTANT – WATER CART INSTALLATION
When using this pump on a water cart, the outlet hose must be independently supported and not rely solely on the pump outlet thread.
Due to hose weight, vehicle vibration, and road impacts, unsupported outlets can cause damage to the threads or housing. This is considered incorrect installation and is not covered under warranty.
This pump is built to move serious water—reliably, efficiently, and safely. Whether you're battling the dry season, managing a rural property, or need a high-pressure backup for emergencies, the BBT Diesel High-Pressure Water Pump is your go-to solution.
