BBT 3" AC48 Surface DC Solar Pump with Controller – 1500W | 48,000 L/h | 17 m Head

Reliable and Sustainable Surface Pumping for Remote Locations

Engineered for durability and easy installation, the BBT 3" AC48 Surface DC Solar Pump delivers high-volume water transfer where grid power is unstable or unavailable. Designed for open water sources and surface applications, this 1500 W solar-driven pump integrates seamlessly with the DCDP-110V controller to ensure consistent performance under fluctuating solar conditions.

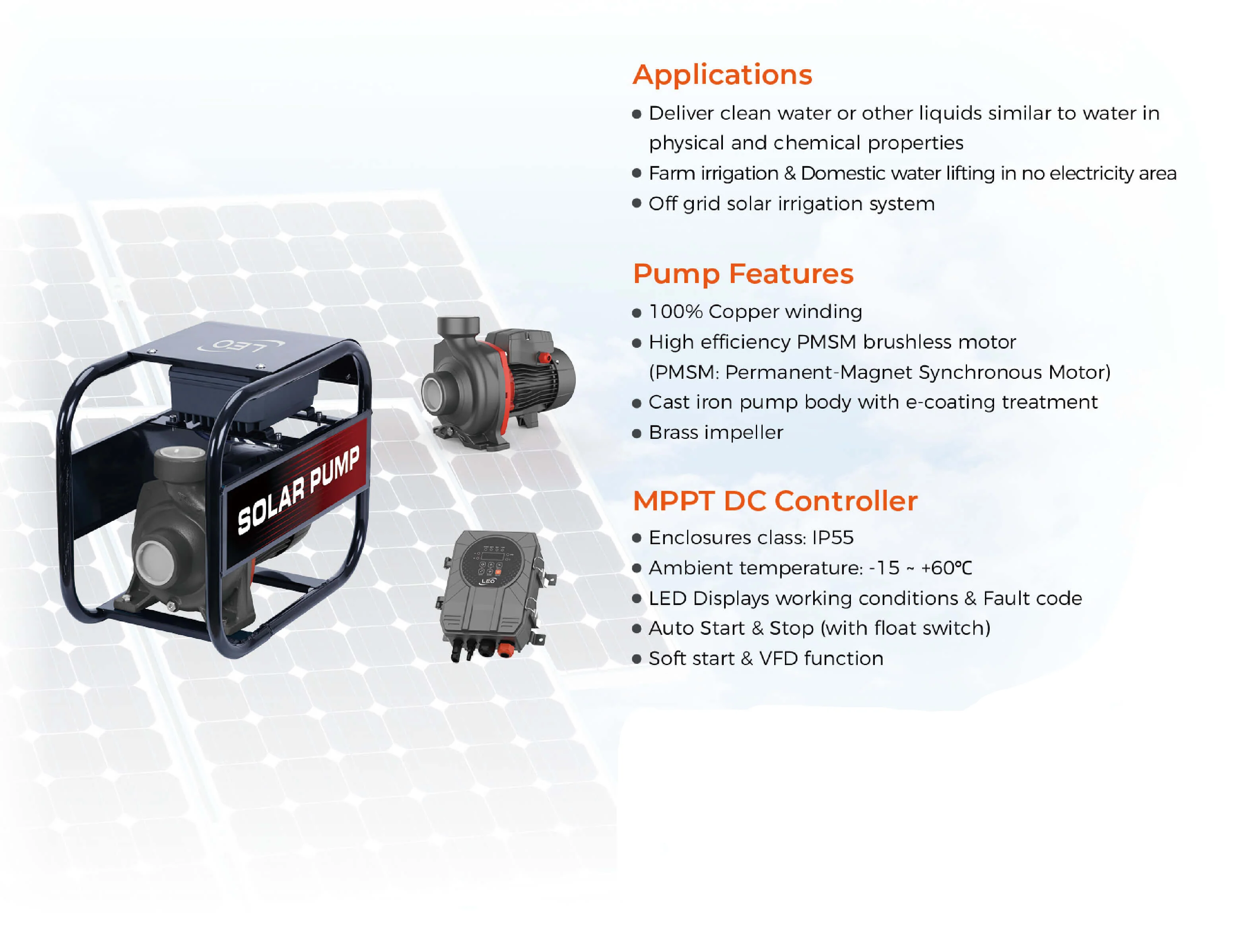

Key Features:

• Rugged, Maintenance-Free Construction
• Durable, corrosion-resistant housing designed for long-term outdoor use.
• Compact 3" design for easy handling and installation in tight spaces.
• High-Performance Solar Pumping
• Power: 1500 W DC motor optimized for solar energy systems.
• Maximum Flow: 48,000 L/h – rapid delivery for large-volume tasks.
• Maximum Head: 17 m – suitable for shallow lift and surface applications.

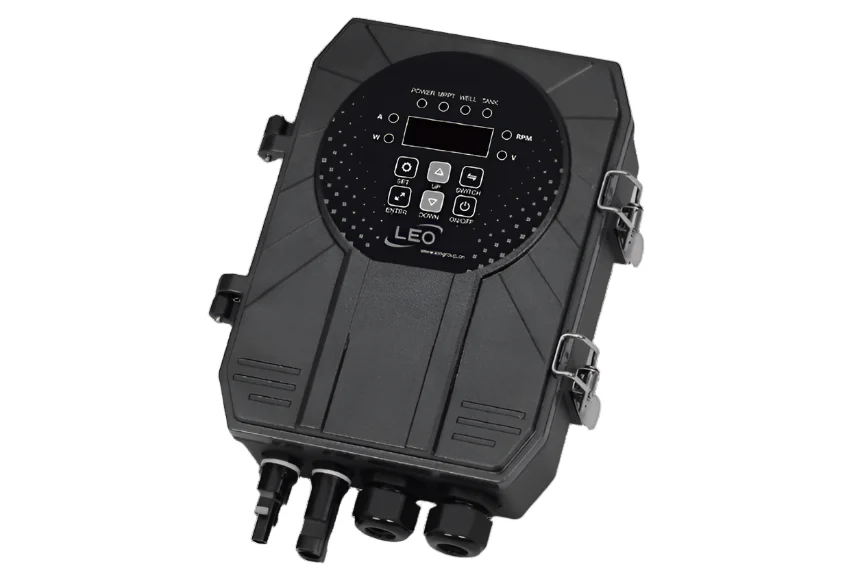

• DCDP-110V Controller Integration
• Input Voltage: 110 V DC / Output Voltage: 110 V AC
• MPPT-enabled control maximizes solar power harvest and protects against voltage fluctuations.
• Built-in safety features: overvoltage, undervoltage, overload, and short-circuit protection.

Recommended Applications:

• Agricultural irrigation from open water sources
• Livestock watering in remote fields
• Domestic water supply for off-grid homes
• Pond
• tank
• reservoir filling

Specifications:

• Model: AC48-17-110-1500
• Power: 1500 W DC
• Maximum Flow Rate: 48,000 L/h
• Maximum Head: 17 m
• Controller: DCDP-110V (DC 110 V → AC 110 V)

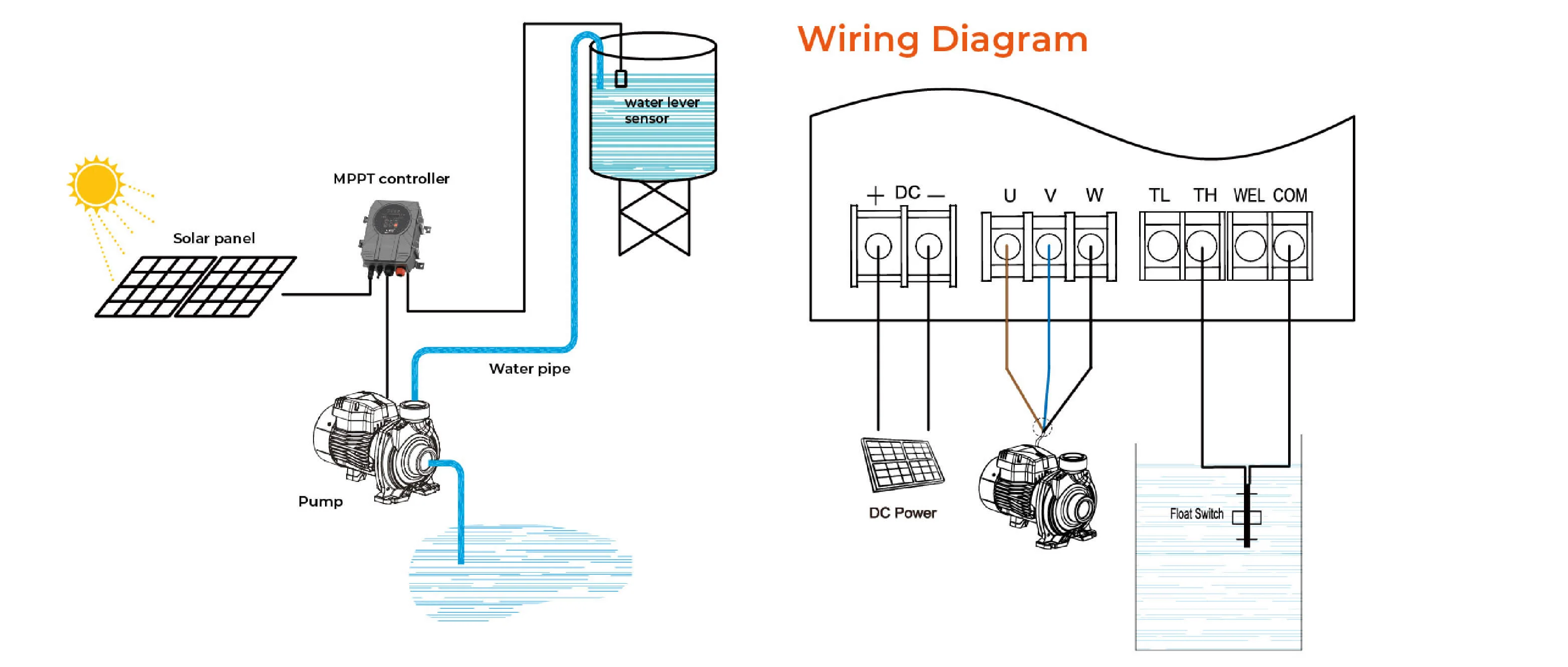

Solar Panel Requirements:

• Number of Panels: 3 (connected in series)
• Panel Wattage: 670 W each
• Vmp: 41.9 V per panel → Total Vmp: 125.7 V
• Voc: 50.16 V per panel → Total Voc: 150.48 V

Resulting System Parameters:

• Total Power Output: 3 × 670 W = 2,010 W
• Series Voltage @ Vmp: 3 × 41.9 V = 125.7 V
• Series Open-Circuit Voltage: 3 × 50.16 V = 150.48 V

Reliable. Efficient. Solar-Powered.

Experience uninterrupted surface water delivery and reduced operating costs with the BBT 3" AC48 Surface DC Solar Pump — your trusted choice for sustainable, off-grid pumping solutions.

Included in the Box:

• 1x 3" DC Surface Solar Pump
• 1x DCDP-110V Pump Controller
• 1x Accessory Bag

Solar panels not included

Box Size: 500mm x 350mm x 450mm
