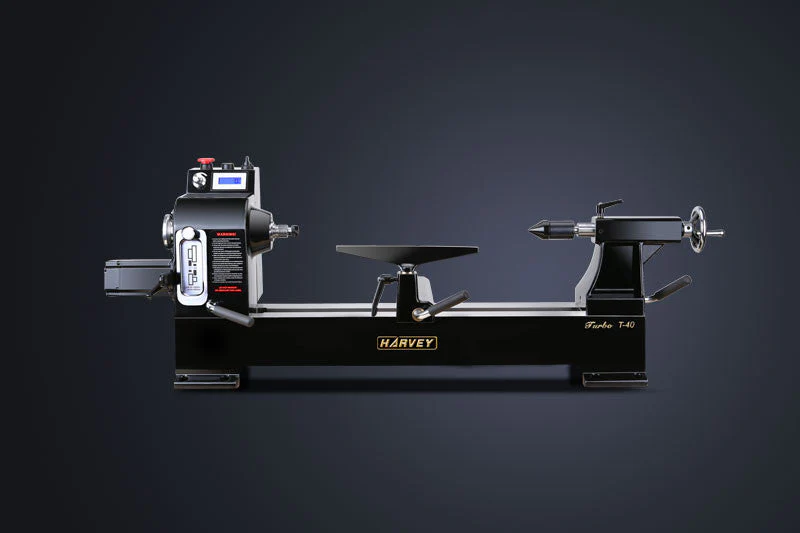

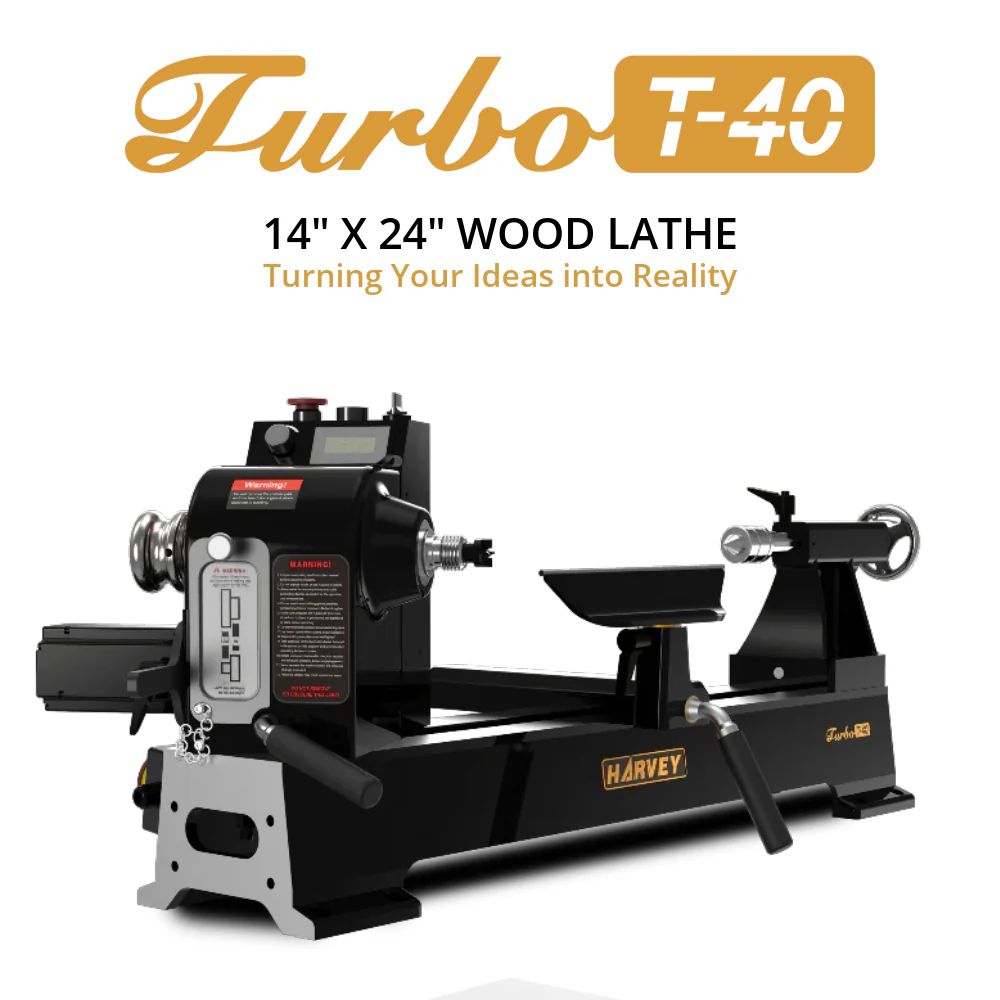

Harvey TURBO T-40 Woodworking Lathe

Tools come from thoughts, and serve just as the extension of your hands. An ideal tool should be performing just as good as your hands, with instant response to your minds; and it has to be amusing, enlightening and beautiful.

Harvey team never stopped pursuing excellence of tools to achieve user’s extreme working experience. After development of Harvey Turbo T-50/60 heavy duty woodworking lathes, Harvey team spent over two years trying to develop a smaller sized ideal lathe which can fit operations of serious hobbyists and personal job shops. Now we are glad to announce that the idea come true: Turbo T-40 Lathe was just born to the earth.

In order to overcome long existing issues of insufficient toque and “speed lost” on most of the small lathes in the market, for the first time in the industry, Harvey introduced the Industrial Servo Motor (ISM) system and integrated into T-40 spindle drive.

With marvellous 300% overload capacity, ISM can easily overcome frequent overloading during turning operation, and the extraordinary speed rigidity of ISM can maintain turning speed with no change. What more, with delicate software tuning, ISM drive can intelligently track the toque needed and simultaneously provides proper power to spindle. Therefore the turner will always feel smoothness of turning without any hassle and interruptions. This revolutionary technology simply brings Turbo T-40 lathe into a completely new level of turning experience.

Turbo T-40 lathe is constructed with premium grade cast iron and machined to the best possible accuracy. The guide ways are precision ground for smoothness of operation. The whole body of T-40 lathe is pained by shiny black varnish. All fit & finish are delicately engineered and crafted for excellence of human experience without compromise.

T-40 has features 360mm (14”) max swing, and 625mm (24”) centre distance. The spindle head can rotate up to 90° for outbound turning. Also, 80KG (178 lb) weight makes T-40 the heaviest animal in its league. Harvey team sincerely hopes the new Turbo T-40 with make a greatly enjoyable “toy” for turners.

Featuring

Industrial Servo Motor drive system with 300% overload capacity
Forward/Reverse spindle rotation
Quick spindle stop (within 1 second)
Variable speed 150 – 4300 rpm
Swivel head stock up to 90°(anywhere lock) for outboard turning
Robust structure with premium cast iron – 80kg (178 lb)
Precision machined and ground guide ways
Forged and ground alloy steel spindle with 3 oversized bearings
Cast steel tool rest with specially hardened blade against wearing
Oversized solid banjo for smooth operation
Built-in spindle 24 indexing system with tool less locks
Black shiny body with baked enamel paint

Maximum swing over bed		360mm (14")
Maximum swing over banjo		260mm (10")
Distance between centres		610mm (24")
Spindle motor drive		Industrial Servo Motor system 220V\50Hz(60HZ)\1Phase
Spindle Speed (variable)		60-2800rpm (Low range)
		90-4300rpm (High range)
Tool rest length		305mm (12")
Spindle Data	Thread	1-1/4"×8 TPI UNS (or M33x1.5mm DIN800)
	Through hole dia.	12.7mm (1/2")
	Taper	MT#2
Tailstock Travel		105mm (4")
Tailstock Quill	Through hole dia.	10mm (3/8")/p>
	Outer dia.	32mm (1-1/4”)
	Taper	MT#2
3" Face Plate		50mm
Spindle Indexing		24 positions
Net weight		80KG (178 lb)

Sibling - Harvey Lathe

Harvey Turbo T-60S Woodwork Wood Lathe

Harvey T-40 Woodwork Lathe

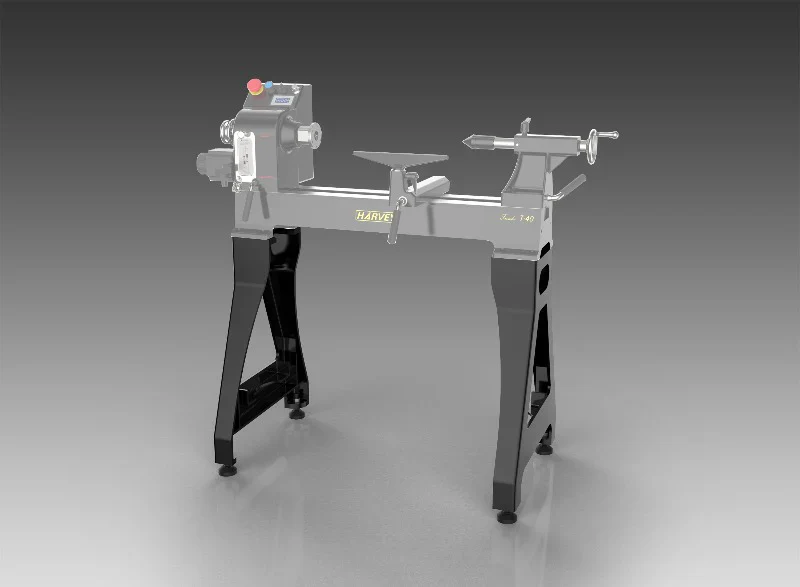

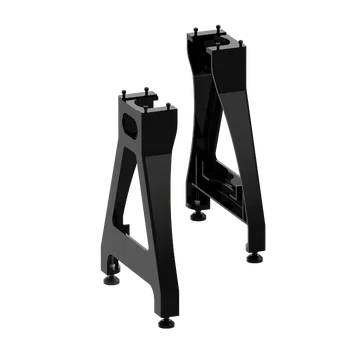

Harvey CI-40 Cast Iron Legs Set for T-40
